Products

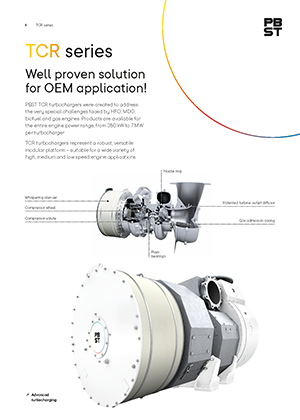

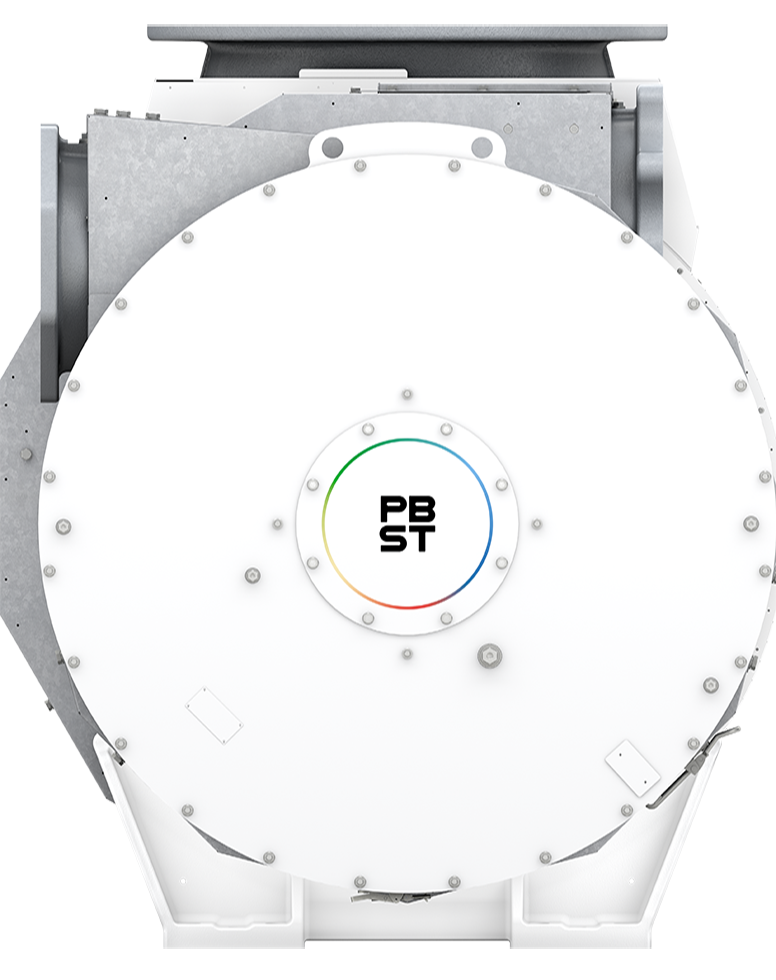

TCR series
Well proven solution for OEM application!
TCR turbochargers were created to address the very special challenges faced by HFO, MDO, biofuel and gas engines. Products are available for the entire engine power range, from 350 kW to 7 MW per turbocharger.
Features
For engine outputs from 350 to 7,000 kW per turbocharger:
- Turbine type: radial flow
- Max. permiss. temp 650°C
- Maximum pressure ratio of 5.4
- Constant and pulse pressure turbocharging
- Pipeless design with integrated oil inlet and oil drain
- Suitable for HFO, MDO, gas
Benefits
- Modular design: fulfill all relevant engine requirements
- Easy to maintain and service: maintenance can be carried out with standard tools
- Variable turbine area optionally available: airflow through TCR turbochargers can be controlled by VTA technology
- Condition-based component maintenance: parts are replaced on the basis of component condition, increasing component life and lowering costs
- Easy installation: compact, pipeless design ensures easy installation
Technical data
| Supercharged engine output | |||
|---|---|---|---|
| Type | 4-stroke [kW] | Max. permissible speed [rpm] | Weight [kg] |
| TCR10 | 600 | 85,000 | 48 |
| TCR12 | 880 | 70,900 | 78 |
| TCR14 | 1,300 | 58,700 | 108 |
| TCR16 | 1,850 | 48,800 | 175 |
| TCR18 | 2,750 | 40,300 | 306 |
| TCR20 | 4,000 | 33,400 | 504 |
| TCR22 | 6,850 | 25,600 | 1,044 |
| Specific air consumption (le) | 6.5kg/kWh | ||

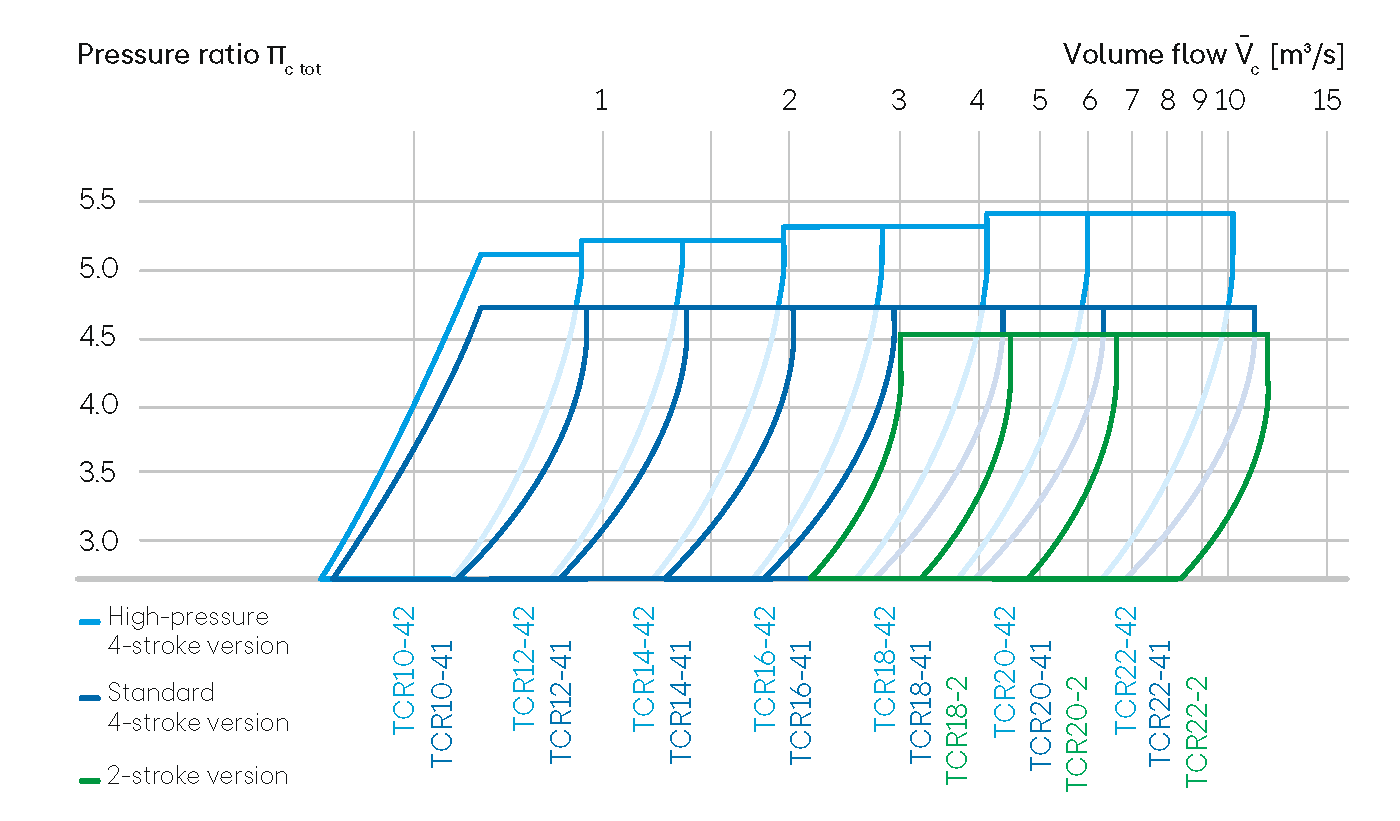

Application range
The latest generation of PBST TCR turbochargers offers reduced size and weight while delivering greater efficiency, performance and reliability. Advanced materials ensure extended overhaul intervals, easier maintenance and a longer life.
