Meet the market leader in two-stage turbocharging.
Products

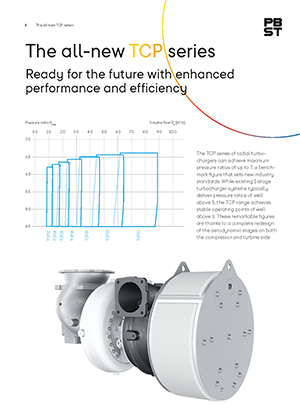

The all new TCP series
Ready for the future with enhanced performance and efficiency
TCP turbocharger are suitable for high-speed and medium-speed engines in marine, power, locomotive and off-road applications considering future and conventional fuels.
The latest radial turbocharger generation is key-enabler to significantly increase power density.
It sets the benchmark in pressure ratio, offers highest efficiency levels and is designed for “plug & play”
Benefits
For engine outputs from 800 to 5,800 kW per turbocharger:
- Maximum pressure ratio of up to 7.0
- Increase of engine power density up to 20%
- Reduction of specific engine costs up to 20%
- Highest efficiency levels
- Significant improvement in dynamic behavior
- Designed for “Plug & Play” using same connection dimensions as similar previous turbochargers
- Future Fuel Readiness
- Less load reduction in altitude
- Long TBOs
- Focus on total cost of ownership
Technical data
| Supercharged engine output | |
|---|---|
| Type | [kW] |
| TCP12 | 800 |
| TCP14 | 1.150 |
| TCP16 | 1.600 |
| TCP18 | 2.200 |
| TCP19 | 3.000 |
| TCP20 | 4.200 |
| TCP22 | 5.800 |
Application range
TCP turbochargers are high
performance solutions, which offer 1-stage efficiency levels > 70% and a
reduction of rotor moment of inertia of 25% which results in a significant
improvement of the dynamic behavior
